Introduction

Are you one of many who are trying to thrive on unsupported Umbraco versions?

Facing security vulnerabilities, fear of losing data, and having your third-part packages just stopped receiving new updates. If yes, then you need a reliable Umbraco solution provider.

With Techxot’s proven expertise in multiple industries, we define safe migration approaches, use proven frameworks for data protection, media and SEO and provide cloud-ready Umbraco solutions worldwide.

At Techxot, we have helped 30+ clients to unlock Umbraco superpowers by implementing tailored, flexible, scalable and performance driven solutions and combining deep expertise with experience and strategy to help enterprises build future ready digital experiences.

Now let’s get back to our core migration journey. After planning and setting up both environments, it was time for the real challenge, moving the actual content, media, templates, and data from Umbraco v8 to Umbraco v13 (LTS).

This is where we spent most of our effort; dealing with uSync migrations, data type mismatches, JSON issues, and a few unexpected bugs.

Here’s how our core migration phase unfolded

1. Installing the uSync Migration Packer

We started by installing the uSync Migration Packer package in our v8 project.

This tool lets you export all data types, document types, templates, and content in a format that’s compatible with v13.Once installed, we:- Generated a full uSync export package (.zip)

– Verified that the packer included all schema elements (especially nested content) This step gave us the foundation for actual core migration.

2. Exporting from Umbraco v8 and importing into Umbraco v13

Next, we moved the exported .zip into the new v13 project and ran the uSync import process.- Umbraco automatically recreated document types, templates, and data structures

– We validated imported content via the Backoffice

– Some complex property editors (like Nested Content) required manual reviewThis step successfully brought our site’s backbone into v13.

3. Converting Nested Content → Block List

One of the biggest changes between Umbraco v8 and v13 is the move from Nested Content to Block List Editor.

We used the uSync Migrator feature to convert all Nested Content data types into Block Lists automatically.However, this caused some property-level mismatches:

– The underlying JSON structure changed

– Linked content references broke (since the datatype changed)

So, while it automated most conversions, it also triggered the next set of fixes.

4. Fixing JSON Mismatches with a Custom Controller

After conversion, some pages didn’t render correctly because the JSON stored in the database didn’t match the new Block List schema.- Read and parse legacy JSON

– Adjust property names and GUID references

– Rewrite the structure to match Block List requirementsThese are some of the JSON structure codes from the core migration project:

1. Nested Content

{"contentTypes":[{"ncAlias":"contentModule","ncTabAlias":"Content","nameTemplate":"Content"},{"ncAlias":"formModule","ncTabAlias":"Content","nameTemplate":"Form Module"},{"ncAlias":"imageHeaderModule","ncTabAlias":"Content","nameTemplate":"Image Header - {{ title }}"},{"ncAlias":"promoTileRowSmallModule","ncTabAlias":"Content","nameTemplate":"Promo Tile Row Small - {{ title }}"},{"ncAlias":"promoTileRowLargeModule","ncTabAlias":"Content","nameTemplate":"Promo Tile Row Large"},{"ncAlias":"promoTileRowMediumModule","ncTabAlias":"Content","nameTemplate":"Promo Tile Row Medium - {{ title }}"},{"ncAlias":"pageIntroTextModule","ncTabAlias":"Content","nameTemplate":"Page Intro Text - {{ title }}"},{"ncAlias":"imageModule","ncTabAlias":"Content","nameTemplate":"Image"},{"ncAlias":"accordionModule","ncTabAlias":"Content","nameTemplate":"Accordion"},{"ncAlias":"quickEnquiryFormModule","ncTabAlias":"Content","nameTemplate":"Quick Enquiry Form - {{ title }}"},{"ncAlias":"facebookFeedModule","ncTabAlias":"Content","nameTemplate":"Facebook Feed"},{"ncAlias":"weatherZoneModule","ncTabAlias":"Content","nameTemplate":"Weather Zone"},{"ncAlias":"stormTrackerModule","ncTabAlias":"Content","nameTemplate":"Storm Tracker"},{"ncAlias":"payMyBillFormModule","ncTabAlias":"Content","nameTemplate":"Pay My Bill Form"},{"ncAlias":"payMyBillResultsModule","ncTabAlias":"Content","nameTemplate":"Pay My Bill Results"}],"confirmDeletes":true,"showIcons":true,"hideLabel":false}

All fields are flatNo separation between content and layout

2. Block List

{"layout":{"Umbraco.BlockList":[{"contentUdi":"umb://element/7dc0d4c6c6c64730aa5f15b9358e6ee7","settingsUdi":null}]},"contentData":[{"udi":"umb://element/7dc0d4c6c6c64730aa5f15b9358e6ee7","contentTypeKey":"a8d1b9fc-d7b8-415d-8b27-765e3cd823e2","key":"7dc0d4c6-c6c6-4730-aa5f-15b9358e6ee7","image":"umb://media/a1b0bdfc0c99467ab3ae577c75646446","imageAltText":"News","title":" Latest News ","link":[]}],"settingsData":[]}

layout.Umbraco.BlockList controls ordering

contentData stores the actual block content

Multiple block types coexist cleanly

Layout and content are decoupled

This script saved hours of manual editing and ensured data integrity across hundreds of content items.

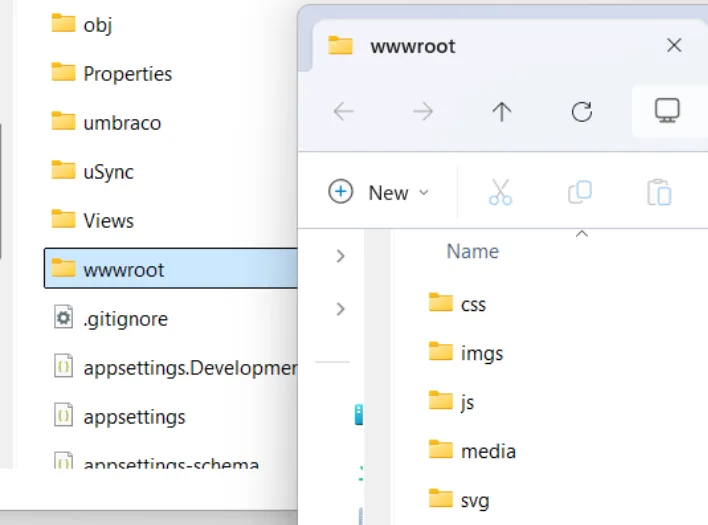

5. Migrating Media and Updating Media Pickers

Media migration was another tricky area.

Umbraco v8 media files were under static folder or in our case Media folder at project root

whereas in v13 all assets are inside wwwroot directory:

Because of this change, media URLs broke, crops didn’t regenerate properly, and some assets lost references after importing.We resolved this by:

– Moving all media files into the new /wwwroot/media/ folder

– Updating appsettings.json so Umbraco correctly pointed to the new media path

– Clearing and rebuilding image crops to fix caching issues

Additionally:

– Replaced all Legacy Media Picker fields with Media Picker 3

– Fixed references where picker value formats had changed

After these adjustments, all media links, crops, and previews rendered perfectly again, both in the backoffice and on the live site.

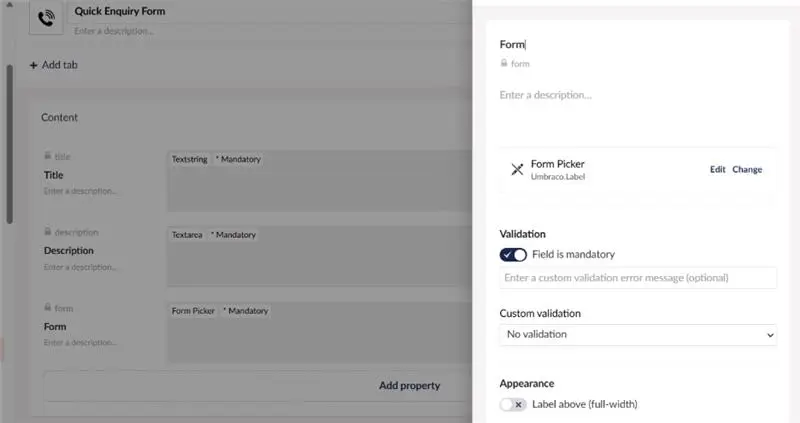

6. Migrating Forms

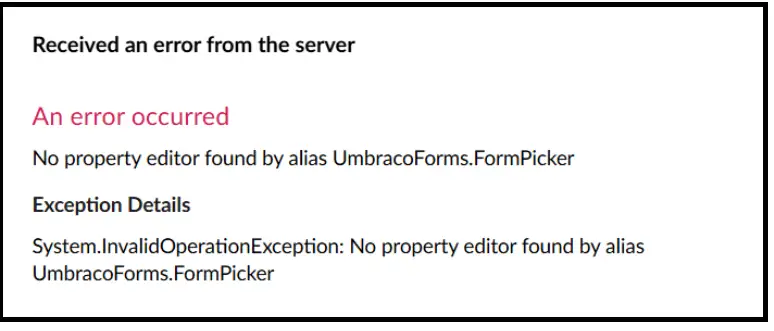

During migration, Umbraco Forms properties were automatically converted into simple “Label” fields, losing their functionality.

We fixed this by:

– Replacing old form-related datatypes with FormPicker

– Re-linking form GUIDs manually

– Verifying that submission endpoints and templates workedOnce done, all forms were back to being functional.

7. Migrating Templates, Views & Partial Views

Templates were another area that needed manual attention.Razor syntax had subtle differences in .NET Core (v13) compared to .NET Framework (v8).

We:

– Updated all layouts and partials to match the new structure

– Replaced old namespaces with the new namespace syntaxSome of the common examples are

Results We Achieved

By the end of this phase:

– All content types, templates, and media were successfully migrated

– All broken JSON and picker issues were fixed

– The new site was structurally identical to the old one but built on a modern, faster, cleaner foundation

It wasn’t easy, but seeing content render perfectly in Umbraco v13 was the best reward for weeks of effort.
